Extended C Type Coil Plate Lifting Tool

Extended C Type Coil Plate Lifting Tool – Universal Lifting Tool for Coiled Materials

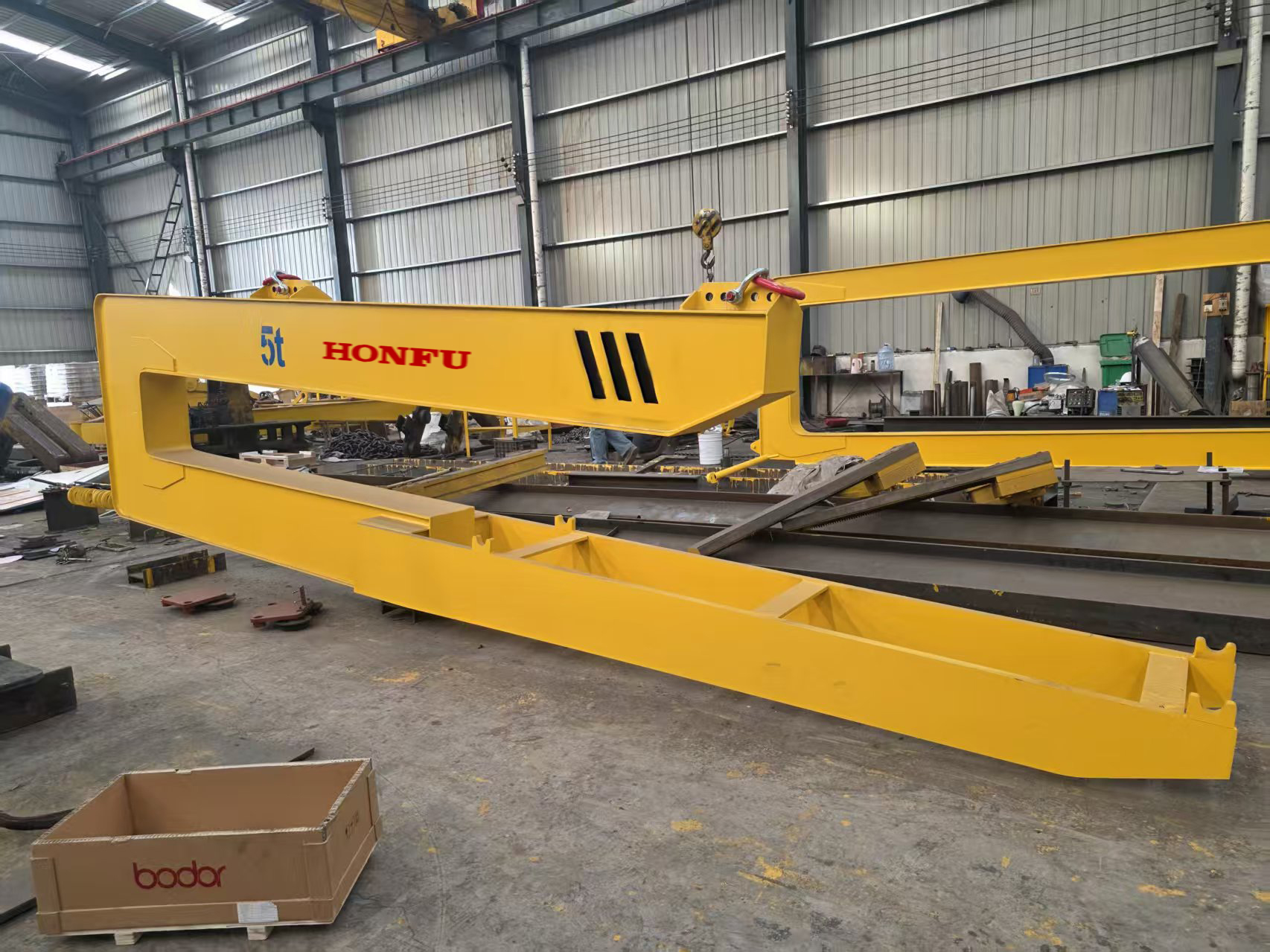

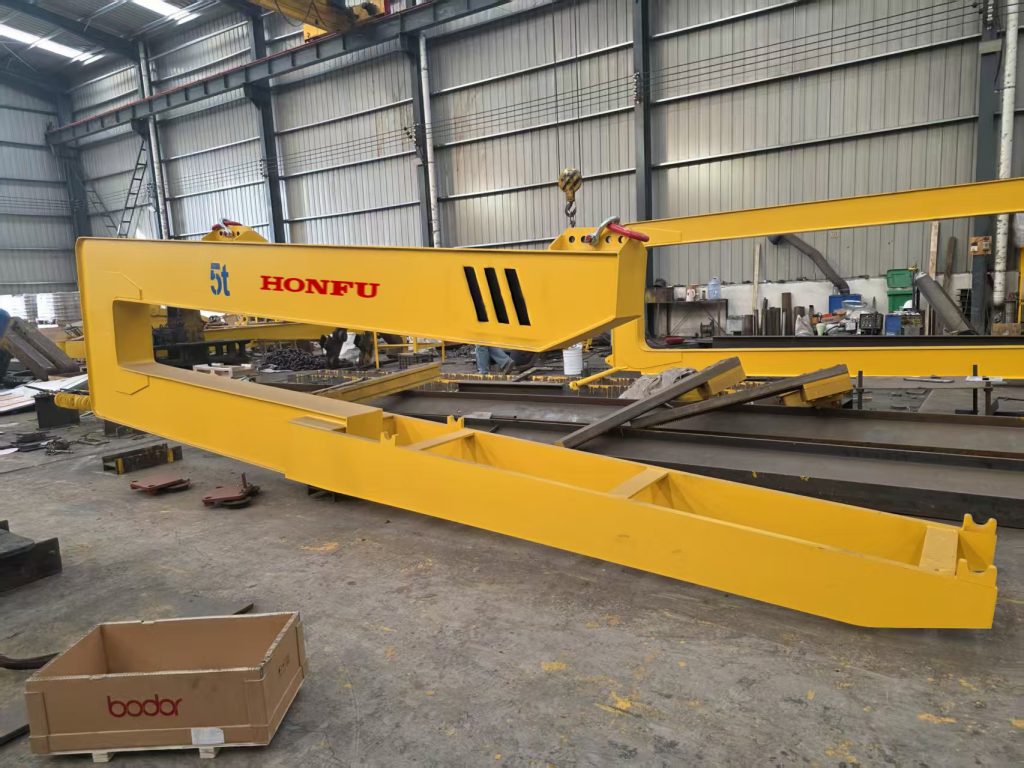

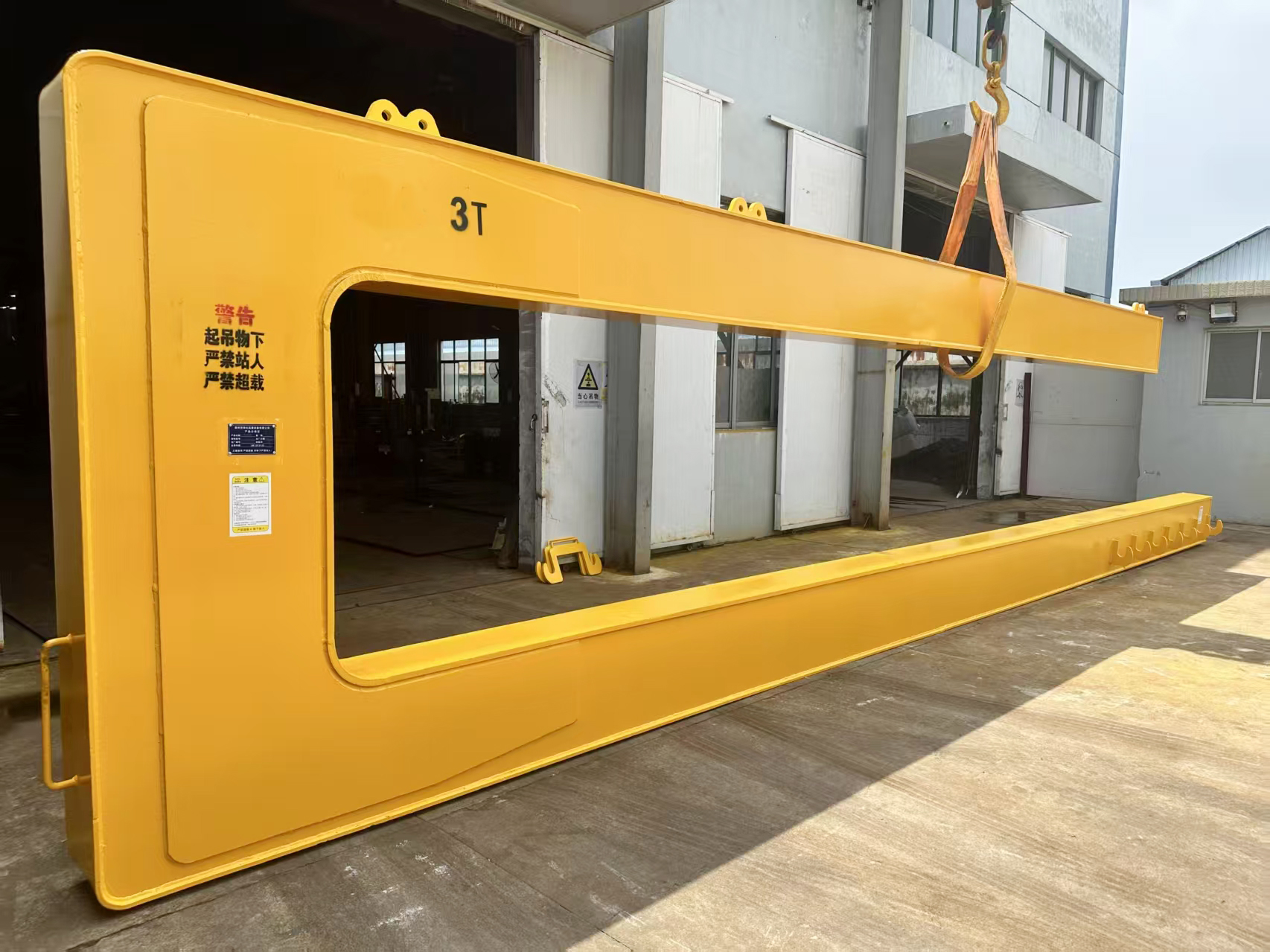

Extended C type coil plate lifting tool is a widely used professional lifting fixture for coil material hoisting jobs. The whole main body is made into an integrated U-shaped frame structure. Besides, this extended C type coil plate lifting tool features outstanding integral rigidity for long-term heavy-load operation. Meanwhile, operators insert the tool into the central inner hole of coils during actual lifting work. The lower supporting surface bears the weight of cylindrical materials such as steel coils and aluminum coils directly. You can match this product with our [electric-rotating-c-type-coil-hook] to satisfy both fixed and rotary coil lifting requirements in your workshop.

Non-clamping Design Advantages of Extended C Type Coil Plate Lifting Tool

Firstly, this extended C type coil plate lifting tool works by bottom bearing force instead of clamping the outer wall of coils. Furthermore, this special bearing mode brings obvious protection effects to finished metal coil products. In addition, it effectively stops two common quality defects during handling: surface indentations and sharp scratches on coil surfaces. Therefore, metal processing factories can greatly reduce the reject rate caused by hoisting damage. Less surface damage means lower production loss and better finished product delivery quality for your enterprise. Pair this fixture with our standard [c-type-coil-lifting-hook] to build a complete coil lifting solution for different coil lengths and weights.

Structural Performance & Long Service Life Merits

The one-piece U frame is formed with high-strength solid steel through overall forging processing. Moreover, the rigid structure resists bending and deformation under continuous heavy working loads. The contact bearing area is polished smoothly to reduce friction contact with coil inner walls. Also, the whole mechanical structure is simple, which brings low difficulty for daily inspection and routine maintenance. Regular anti-rust coating and partial lubrication can effectively prolong the service cycle of the extended C type coil plate lifting tool. You can refer to official [ASME industrial lifting equipment safety codes] to make standardized operation rules for on-site lifting staff.

Applicable Industrial Application Scenarios

• Steel mills and aluminum factories for hot rolled & cold rolled coil transfer
• Metal surface treatment workshops for finished coil loading and unloading
• Large metal raw material warehouses and industrial logistics distribution yards
• Freight terminals for container loading of steel coils and aluminum coils
