Electric Chain Tilting Lifting Tong

Electric Chain Tilting Lifting Tong – Professional Motorized Lifting & Turnover Fixture

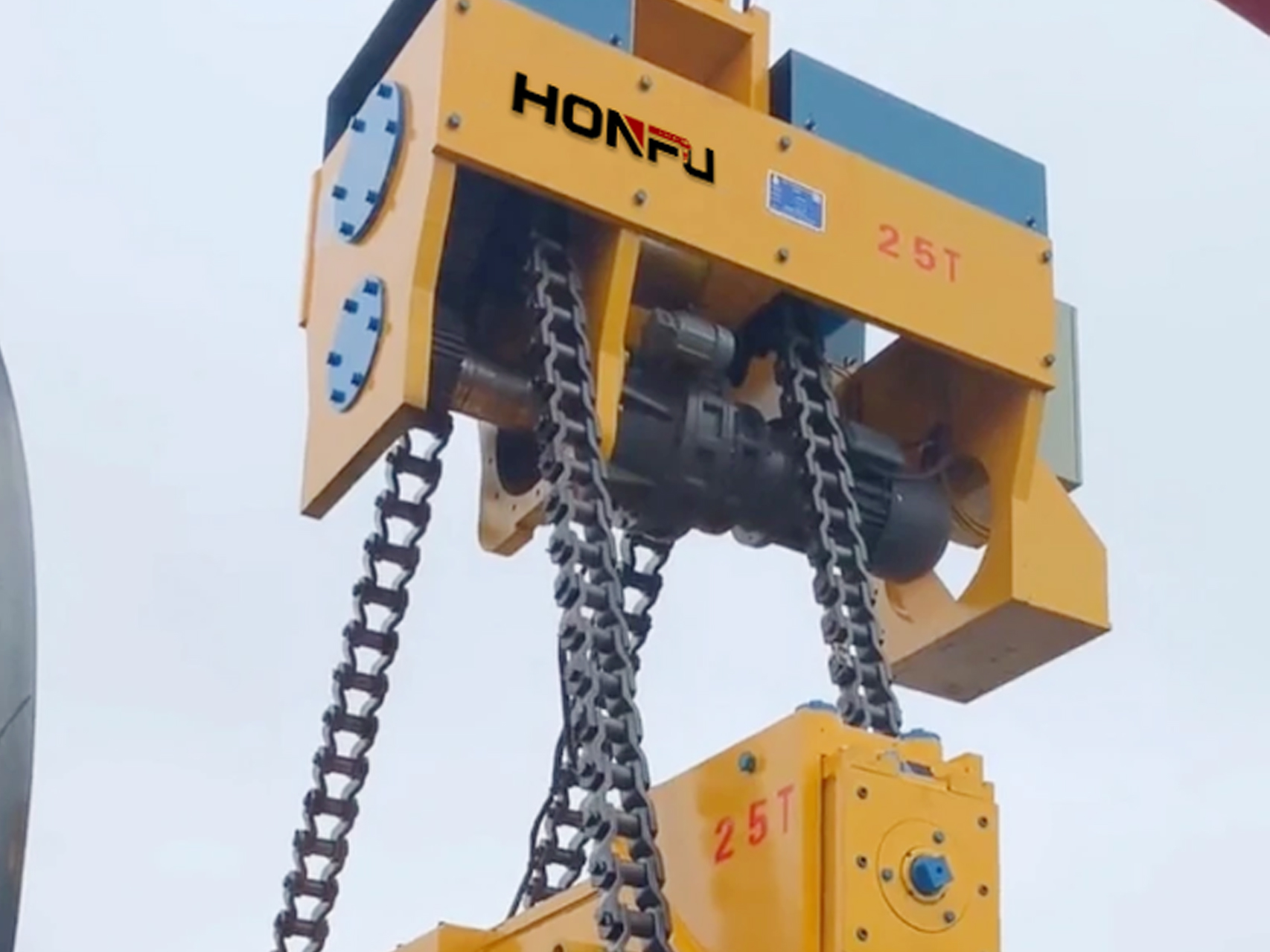

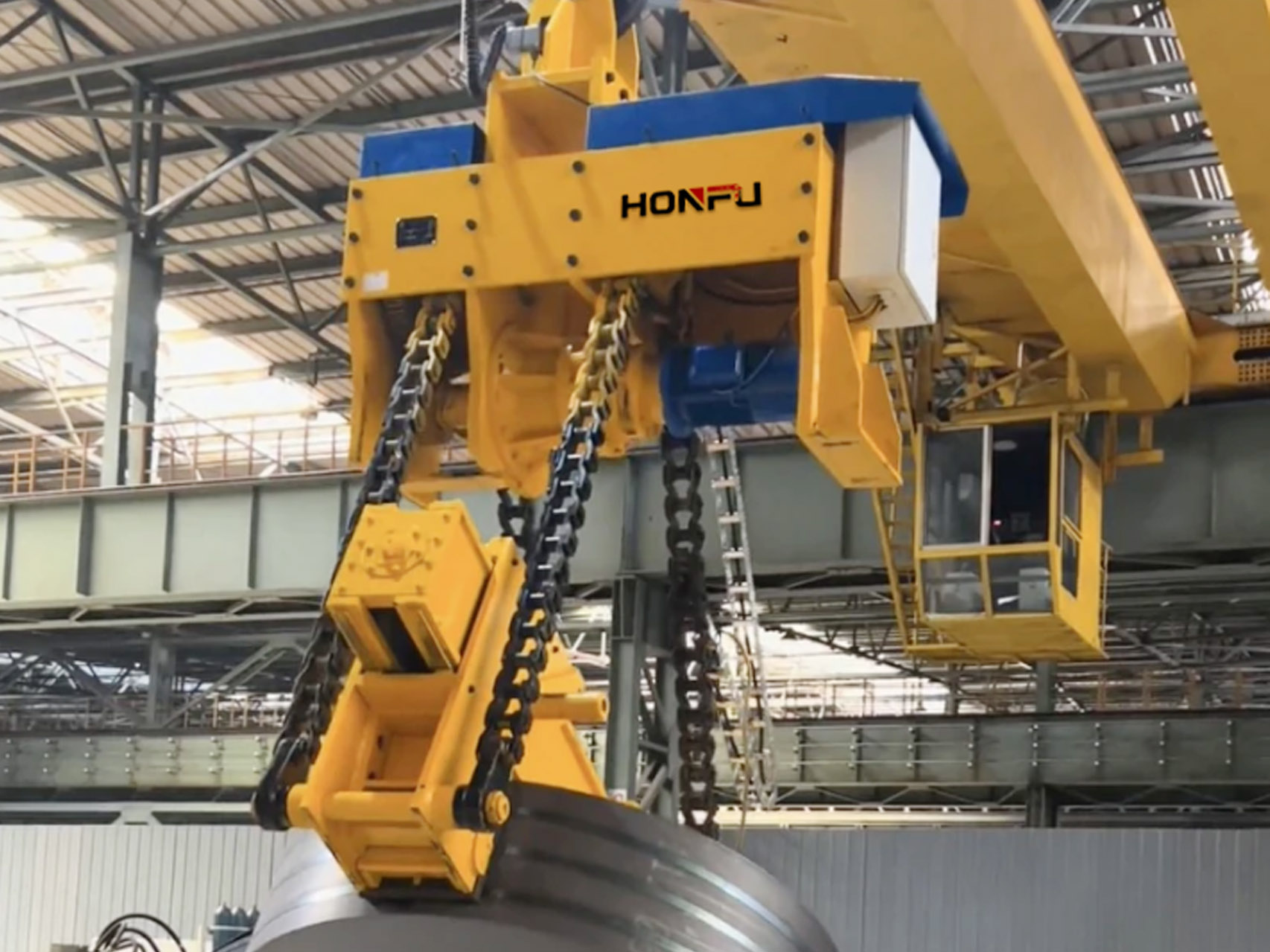

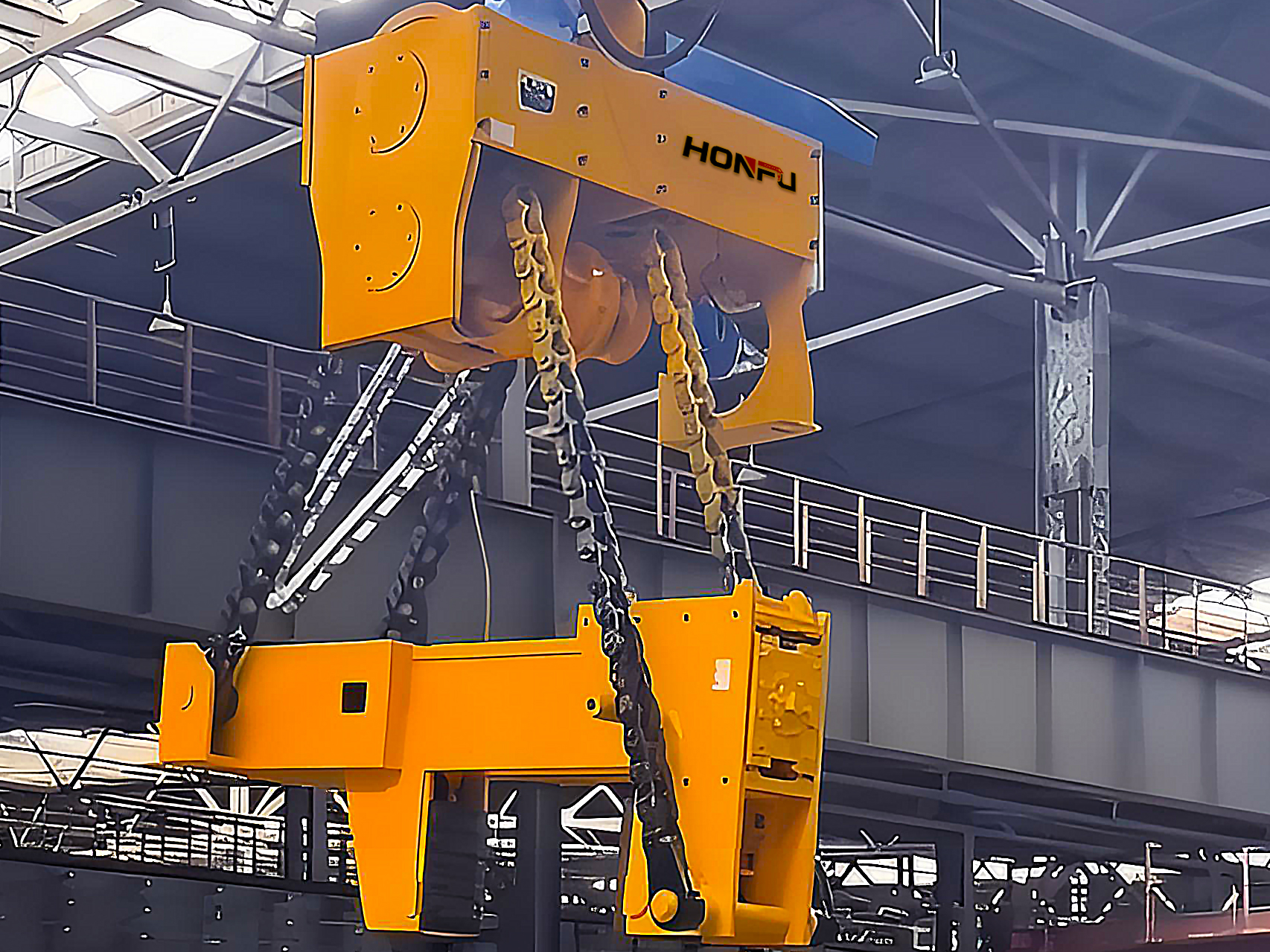

Electric chain tilting lifting tong is a special electric lifting tool for hoisting industry, designed to work with overhead cranes and gantry cranes. With the help of chain transmission structure, this tong completes material clamping and automatic flipping movements. Besides, it is widely used for lifting and posture conversion of steel coils, steel plates and various section steel workpieces in industrial sites. You can match this lifting tong with our [electric-horizontal-coil-lifting-tong] to build a full set of automatic steel coil handling equipment for your production line.

Complete Component Composition & 90° Stable Flipping Function

The whole equipment consists of seven core assemblies: lifting base, main clamp body, electric drive unit, chain transmission mechanism, clamping locking device, braking system and electric remote control system. Firstly, the motor drives chains to open and close clamp jaws for firm gripping of workpieces. Furthermore, it can achieve stable 90-degree turnover during hoisting, switching workpieces between horizontal placement and vertical placement freely. In addition, built-in power-off self-lock and anti-slip & anti-drop protection keep flipping operation uniform and smooth. This multi-protection mechanism effectively reduces risks of workpiece collision, abrasion and falling during operation. Combined with our [double-sided-vertical-steel-coil-clamp], your factory can cover vertical clamping, horizontal grabbing and automatic flipping demands at the same time.

Chain Drive Advantages & Intelligent Remote Operation

Chain transmission delivers stable bearing capacity and performs well under heavy-duty working conditions. Compared with rigid direct-drive clamps, the chain structure owns superior buffering performance and is compatible with workpieces of multiple sizes and specifications. Operators adopt wireless remote control for long-distance operation without close manual assistance on site. Moreover, this lifting tong supports non-standard customization according to rated load and workpiece dimension requirements. All operating behaviors must comply with official [ASME chain-driven lifting tong safety regulations] to guarantee long-term safe production.

Main Application Scenarios & Working Process

• Steel product transportation and automatic feeding for processing lines

• Loading and unloading operations in storage yards and logistics terminals
• Workpiece turnover and material handling in heat treatment workshops
• Container loading and truck shipment of steel raw materials
